Rebelcell Quick Connect Fishfinder for Outdoorbox

Quick Connect-kabel med integrerad 3A-säkring för en säker 'ett-klicks-koppling' mellan din Rebelcell Outdoorbox och ekolod. Ansluts till Outdoorbox via cigarettuttaget och till ditt ekolod via ANEN PA-45-anslutningen (1 extra ANEN PA-45-koppling ingår för din utrustning).

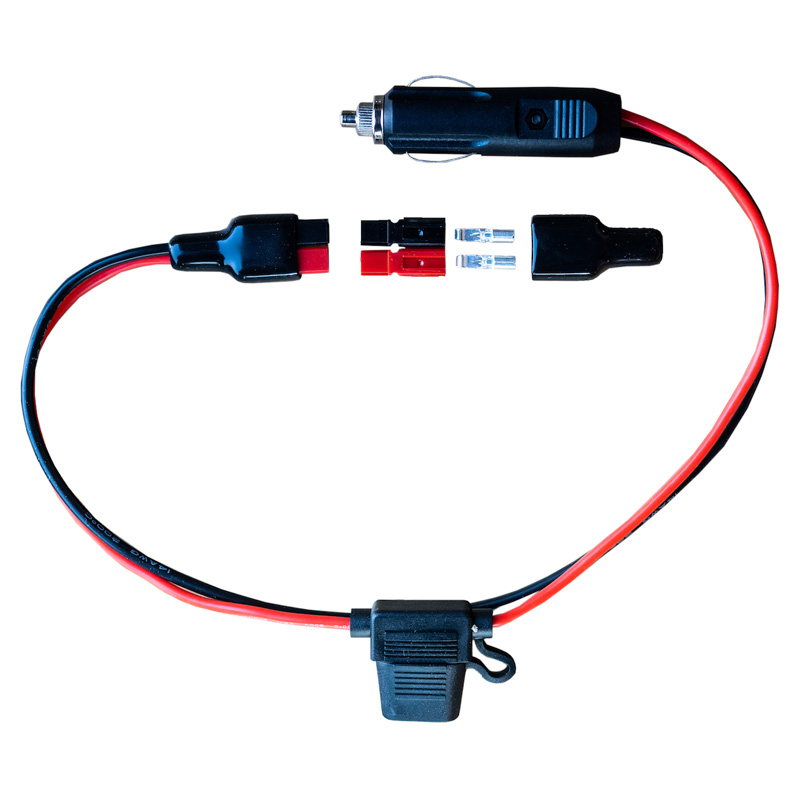

• 1 x 4mm2 anslutningskablar: ~ 40 cm långa med cigarettuttagskoppling och ANEN (röd/svart) PA-45-koppling
• Integrerad 'in-line' 3A-säkring + extra ANEN PA-45 koppling för din utrustning
• Säker 'ett-klicks-koppling' mellan Outdoorbox och din utrustning

Instructions for use

1.
Connect the cigarette lighter plug to the 12V sockets on the Outdoorbox; the extra red/black ANEN connector needs to be connected tot the wiring of the fish finder.

2.
The silver colored contact points of the ANEN connector can be crimped (use a AMP crimping tool for non insulated cable connectors). After crimping the contact points need to be inserted in the the red (for +) or the black (for -) connector until they “click”. The contact points are now secured and cannot be disconnected. Slide the red and black parts in place with the black sheeth, and connect to the corresponding ANEN plug on the Quick Connect FF cable.

3.
Only use with fish finders and other suitable 12V equipment with maximum power draw of 10A (and use suitable inline fuse, a 3A fuse is included).
