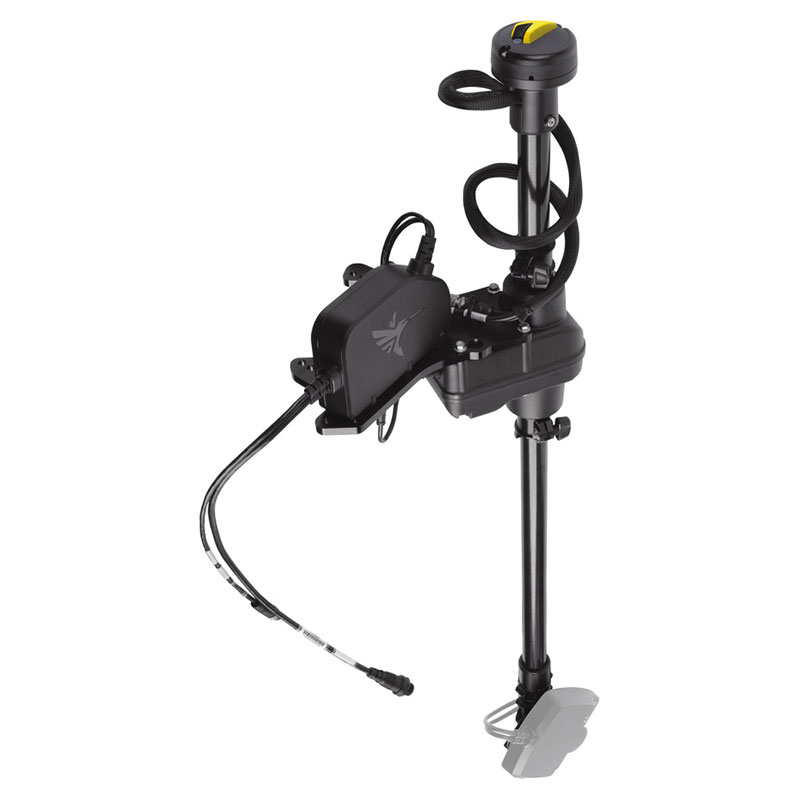

Humminbird Mega Live Target Lock

Target lock gör att du kan låsa en riktning på Mega Live givaren så du kan förflytta din båt och hålla ditt mål i sikte med Mega live! Minn kota Steer följer elmotorns rörelser.

Mega Live Sweep sveper Mega live givaren 120° ( 60° vänster & 60° höger)
* kräver Humminbird AS GPS HS eller Minn kota Headingsensor kopplat via en Link motor

Trådlös fotpedal
Manuell styrning, höger och vänster.
Target lock knapp som låser riktning på givaren
One boat network knapp som är programmerbar utifrån vad du vill:
*Waypoint markering
*Mega live sweep på/av
*Mega live pingning på/av
*Hem position för givaren

Mega live givaren kopplas in mot kontrollboxen (ström och nätverk). Kontrollboxen kopplas sedan in mot nätverket eller enhet och matas med separat strömkälla. Fungerar till Ultrex motorer med 45″ & 52″ skaft.



Med i förpackning:
Anodiserat Aluminiumfäste
Target lock system
Nätverkskabel
Strömkabel
monteringsdetaljer / skruvar
Trådlös fotpedal

Kompatibel med:
Helix 8 G3N – Helix 12 G3N ( MEGA enheter )
Helix 7 G4N – Helix 15 G4N ( MEGA enheter )
Solix – Samtliga modeller
Apex – Samtliga modeller


- MEGA Live TargetLock is mounted independent of the trolling motor steering, which allows anglers full use of their trolling motor, including Spot-Lock, while having dedicated control of MEGA Live Imaging.

- The TargetLock feature allows anglers to set a directional lock of the live sonar and it will keep itself oriented, so anglers never lose sight of the structure, even while the boat moves in the water.

- MEGA Live TargetLock can be controlled, from the included MEGA LIVE foot pedal, the trolling motor foot pedal using the Minn Kota Steer feature (requires motor with i-Pilot Link), the Humminbird fish finder, or from an optional accessory hand remote.

- The MEGA Live Sweep provides a constant 120 degree sweep out in front of the boat to help identify structure and fish while maintaining control of the trolling motor. (Requires AS GPS HS or Minn Kota Heading Sensor with Ultrex trolling Motor with i-Pilot link)

- MEGA Live Imaging allows fish and structure to be seen in real-time, with no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.

- Choose from multiple viewing modes; Forward Mode for partial coverage below the boat and out away from the boat, Down Mode for a full view below, and Landscape Mode for a wide, top-down view looking out and around the boat.

- Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, allowing for the connection of optional sonar source like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.

- Compatible Humminbird control heads: All APEX™️ models, All SOLIX®️ models, and HELIX®️ 8-12 G3N & HELIX 7-15 G4N models (Must be MEGA Side Imaging or MEGA Down Imaging model).

- MEGA Live TargetLock is exclusively compatible with Minn Kota®️ Ultrex™️ - 45”& 52” trolling motors.

- Includes: Includes MEGA Live Steering Assembly, Wireless Foot Pedal, Ultrex Mounting Kit and Hardware, 20' Ethernet Cable, and 10' Power Cable.

- MEGA Live Imaging Transducer and Trolling motor not included.
